This instruction manual will guide you on how to replace the battery in the Gemini WRX-900TOGO Portable Line Array PA Speaker System. This straightforward procedure will only require a few minutes of your time. The tools you'll need for this task include an allen wrench, a hex key, and a Phillips screwdriver. Please follow these directions meticulously to prevent causing harm to your speaker system.

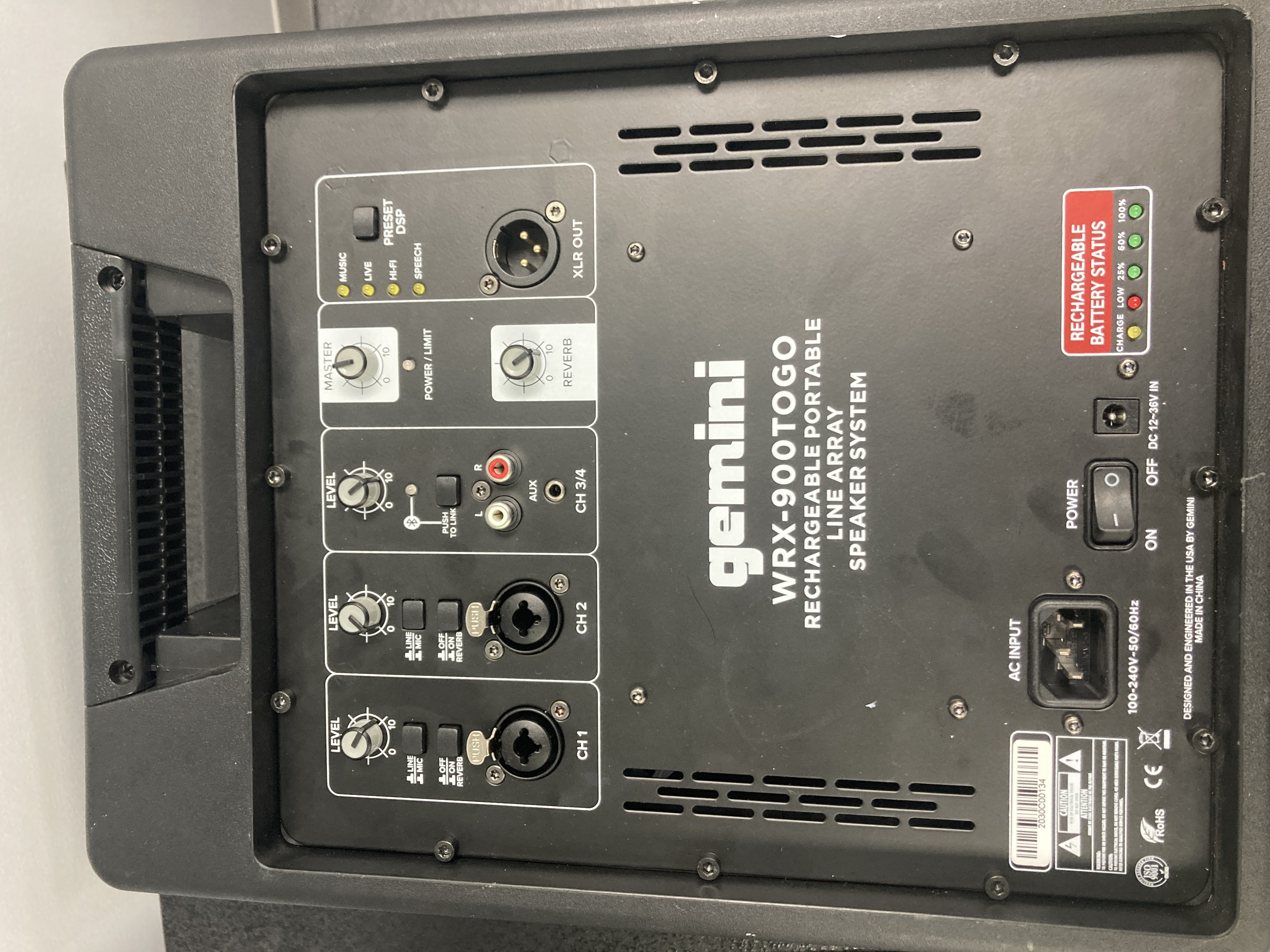

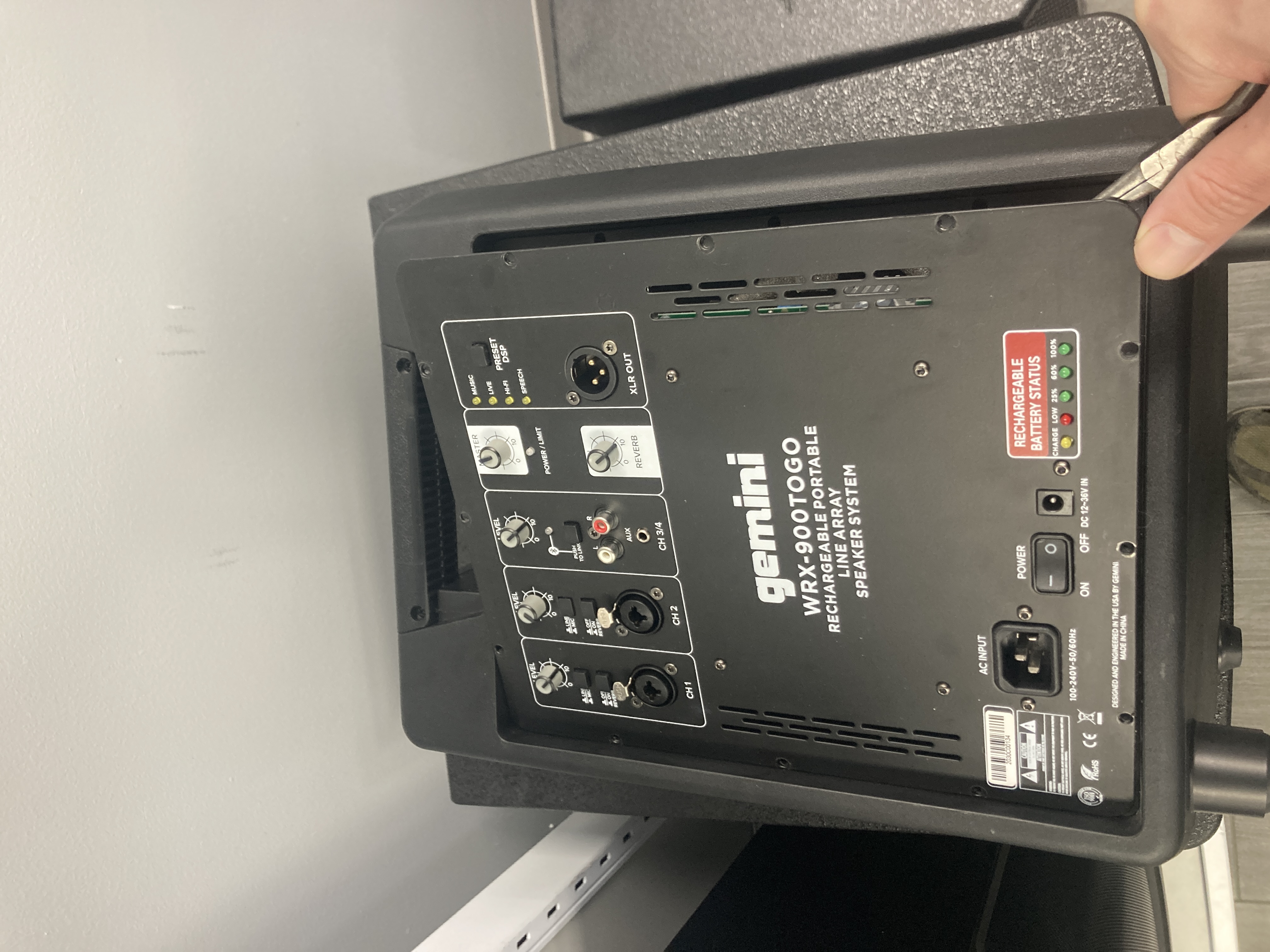

- Utilize an allen wrench or hex key to unscrew the 12 screws affixing the back panel of the subwoofer. Set the screws aside in a secure location to avoid misplacing them.
- Gently remove the back panel, providing access to the circuit board nestled within the speaker system. Exercise caution to prevent pulling any wires or damaging any components.

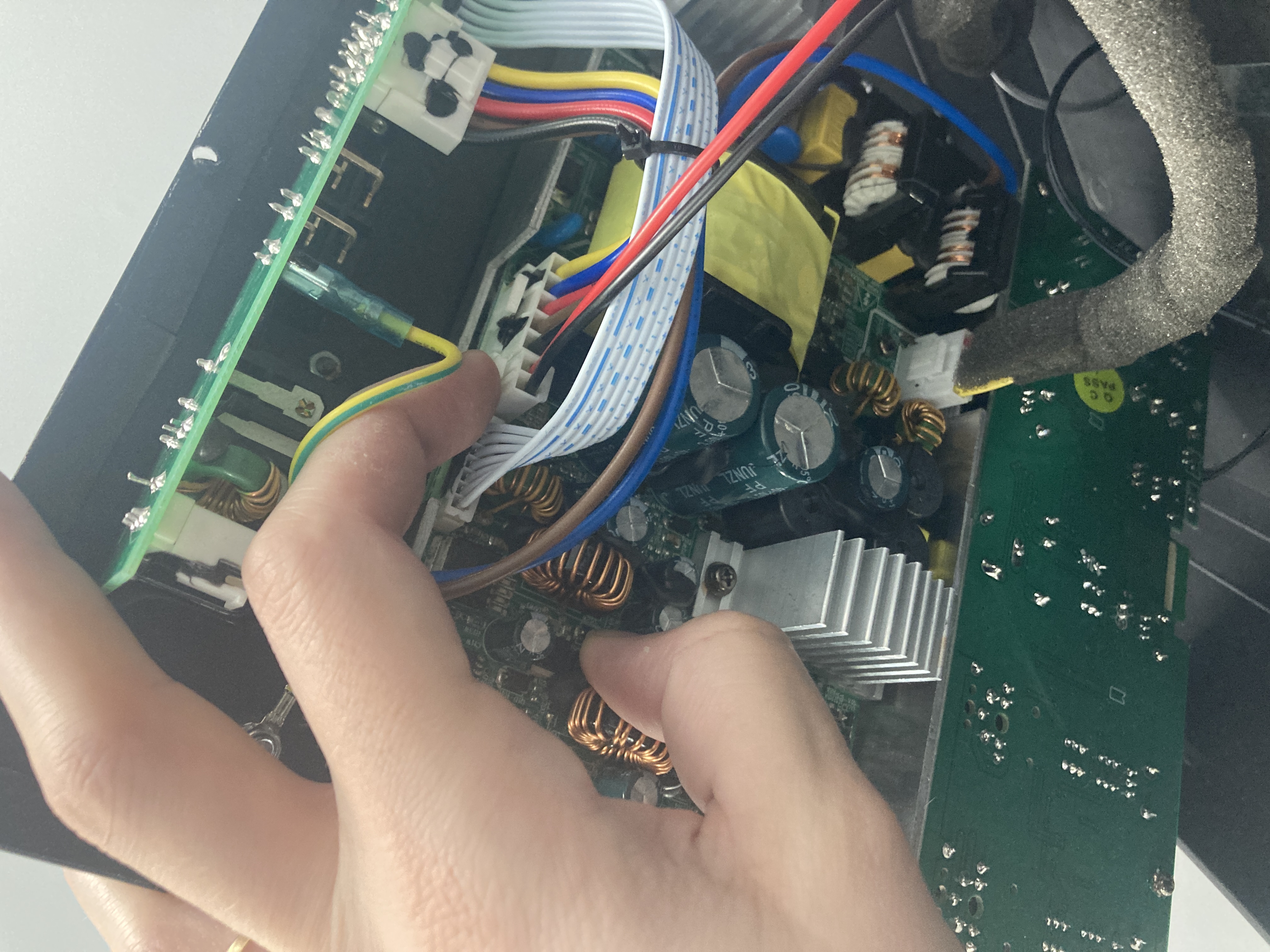

- Locate the battery connector, identifiable by a red and black wire, on the circuit board. Use the push tab to release it, gently wiggling if necessary for disconnection.
- Reposition the back panel for easy access to the battery within the speaker system. The battery is located behind the subwoofer panel, shielded by a foam cover.

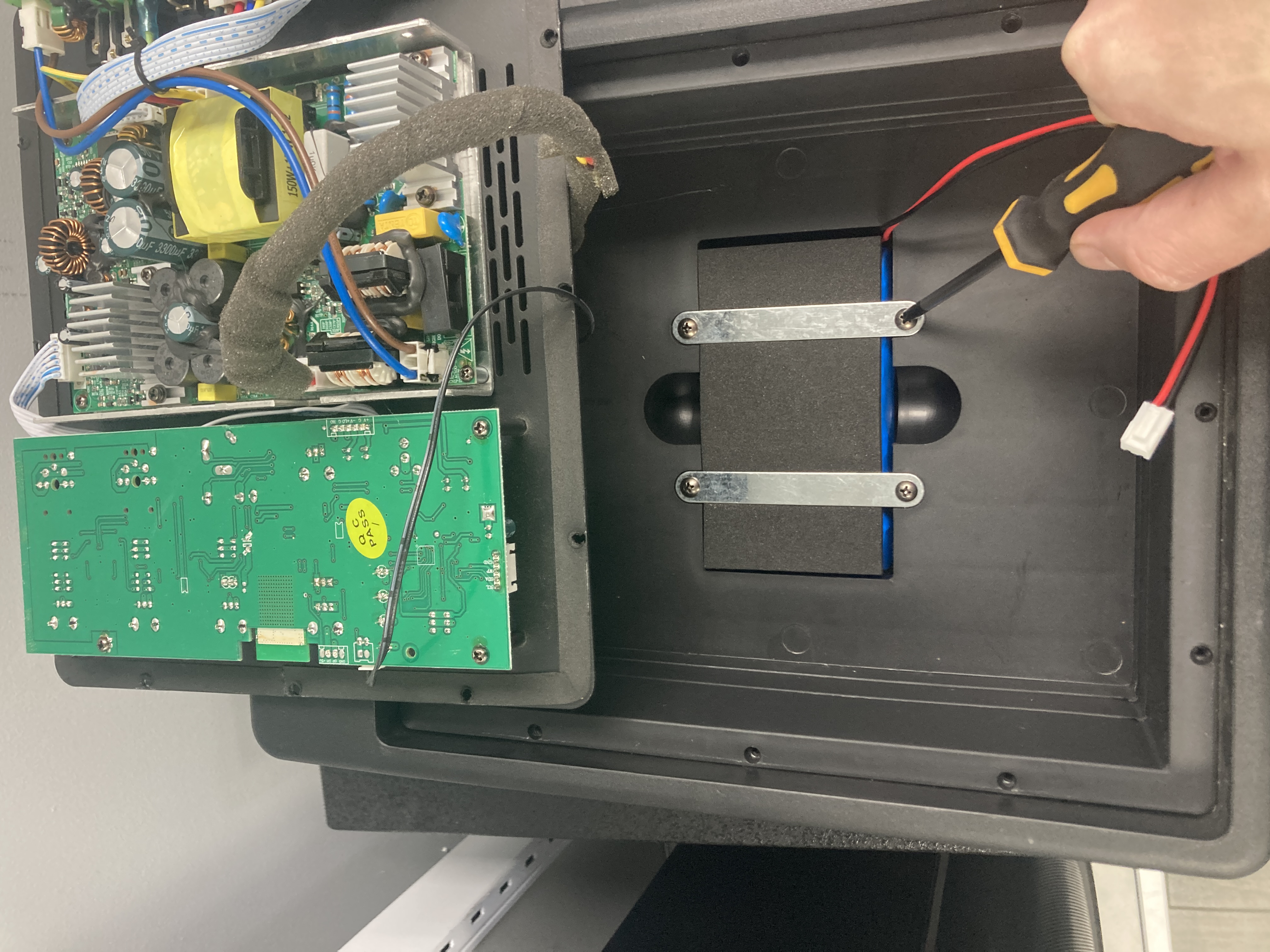

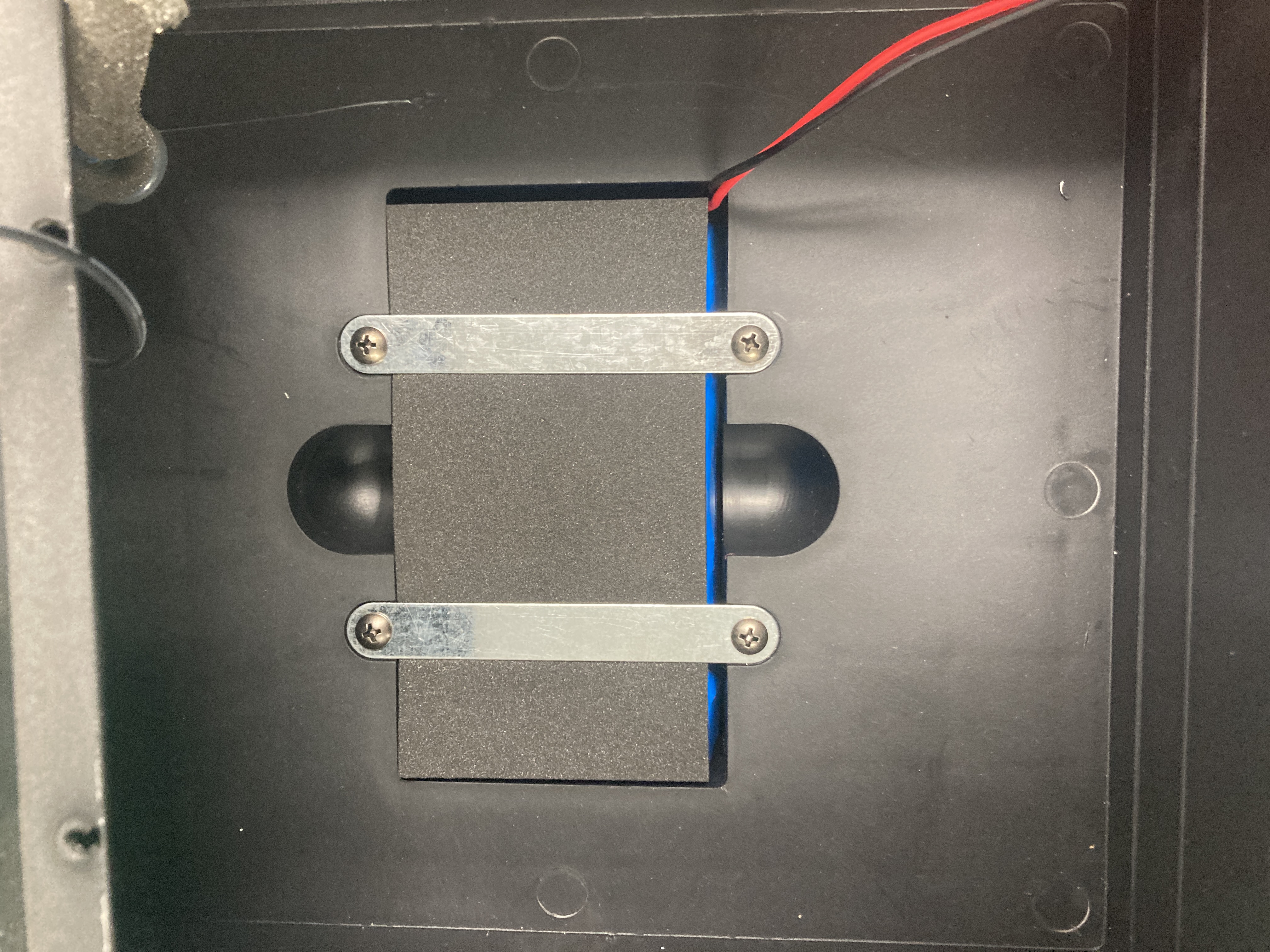

- Unscrew the brackets securing the battery in place. Each bracket has four screws. Remember to keep the screws and brackets in a secure location so they won't get lost.

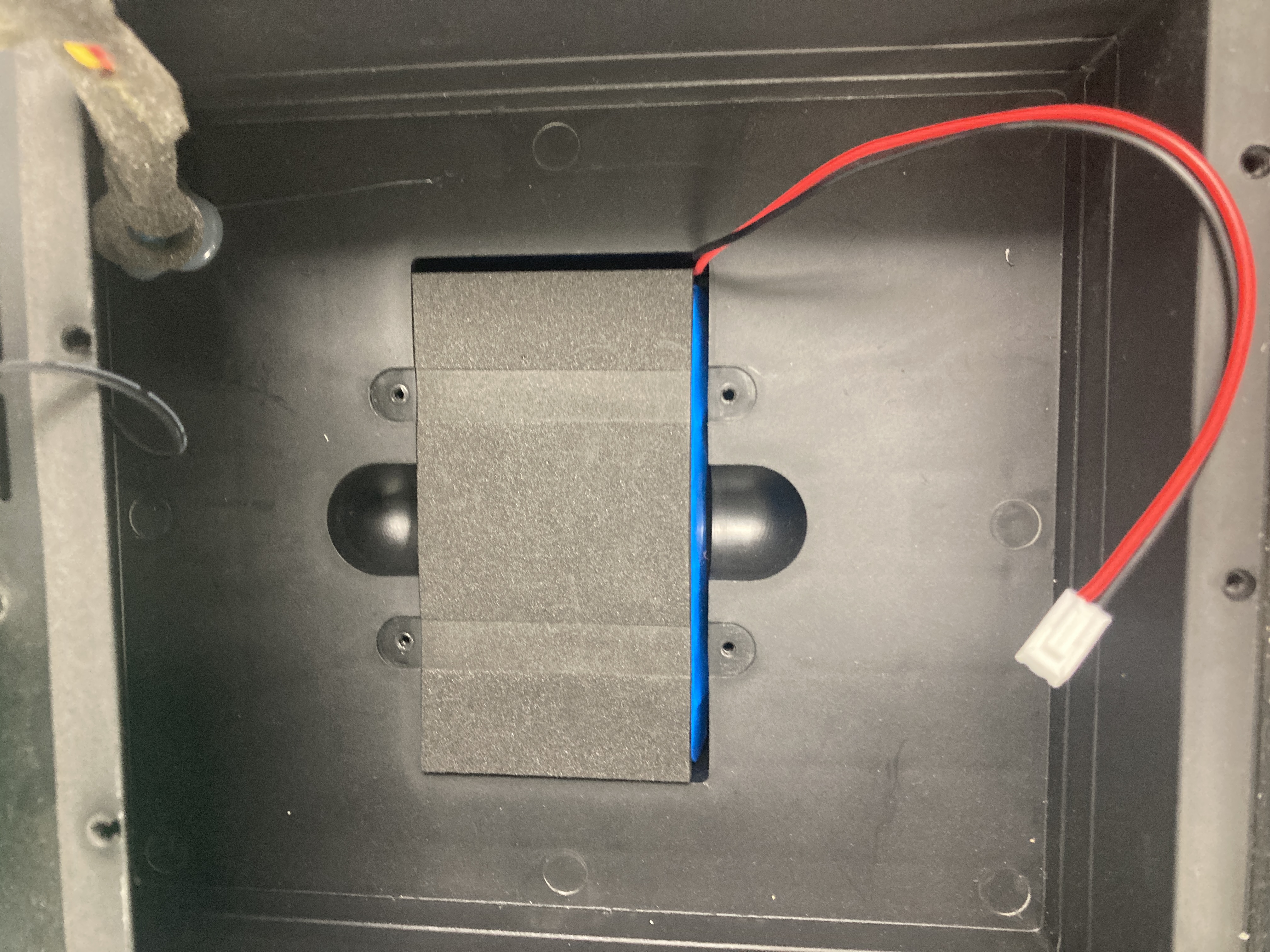

- Remove the foam battery cover and place it aside.

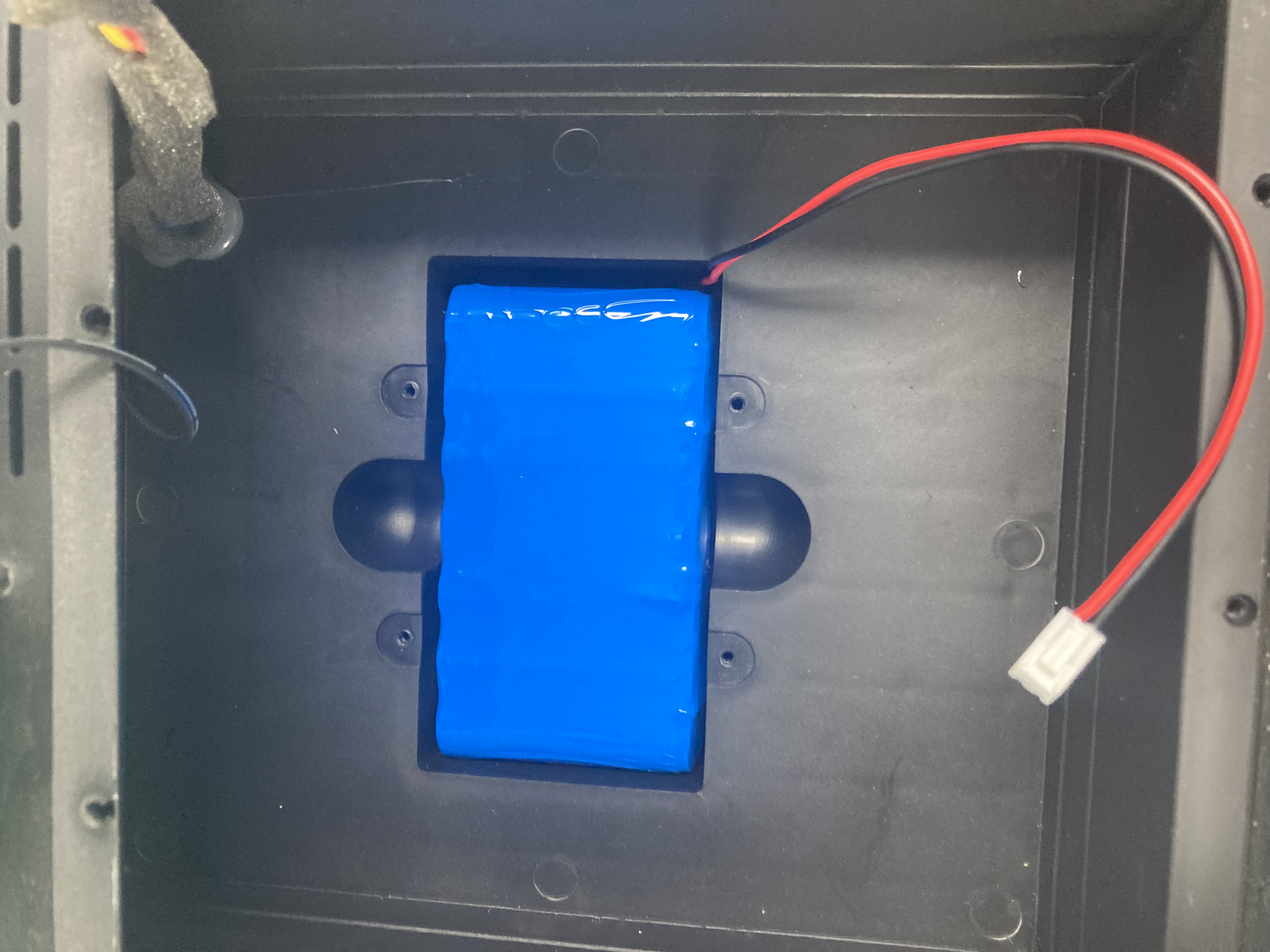

- Extract the old battery and dispose of it responsibly, adhering to local regulations.
- Insert a new battery of the same type and specifications. Ensure the battery is correctly oriented and fits securely in its compartment.
- Replace the foam battery cover and fasten it with the brackets and screws that were previously removed.
- Reconnect the battery connector, the one with red and black wires, to the circuit board. Confirm that it is securely attached and correctly aligned.
- Reposition the back panel to its original place, aligning it with the screw holes on the speaker system.
- Utilize the allen wrench or hex key to reinsert the 12 screws into the back panel, making sure they're tightly fastened.
- Congratulations! You've successfully replaced the battery in your Gemini WRX-900TOGO speaker system.
Enjoy your music!
