Stereo Devices: (DJ Mixer, Drum Machine, AUX cable, etc.)

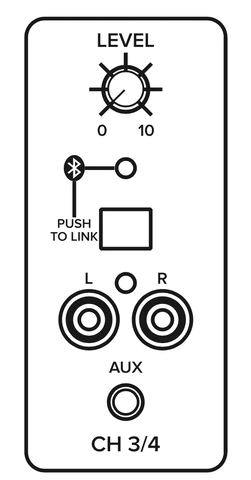

If your Stereo Device has RCA or 1/8" output, connect to the appropriate input jack on Ch 3/4.

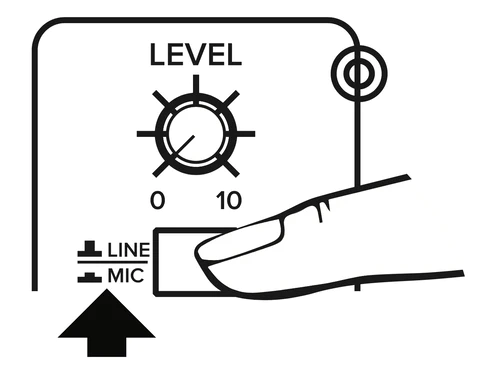

If your Stereo Device has 2 x XLR outputs, connect to Channels 1 & 2 with the LINE/MIC switch depressed for LINE mode.

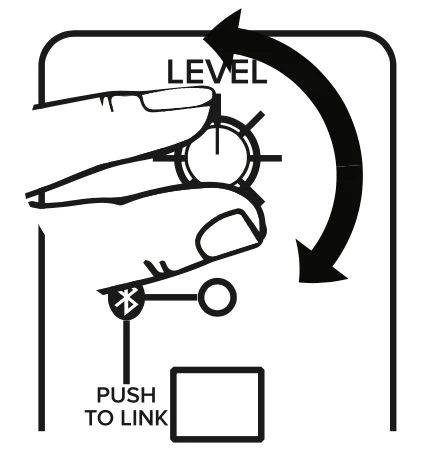

Once the stereo device is connected, ensure Master Volume is turned to the preferred level. Use the LEVEL knob to adjust the volume while speaking into the microphone until the preferred level is reached.

Mono Instruments: (Keyboard, Active Guitar/Bass, etc.)

Connect to the inner 1/4" jack of channel 1 or 2 with the LINE/MIC switch depressed for LINE mode.

Once the mono source is connected, ensure Master Volume is turned up to the preferred level, then use the LEVEL knob to adjust the volume while playing the instrument until the preferred level is reached.

Product: WRX-843, WRX-900TOGO
