Removing the Needle from the Cartridge

1. Prepare: Ensure the turntable is powered off and unplugged for safety.
2. Position: Place a small screwdriver at the tip of the stylus (needle).

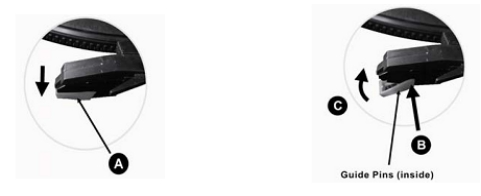

3. Push Downward: Gently push the screwdriver downward, as indicated by direction "A" in the diagram.
4. Pull Forward: Carefully remove the stylus by pulling it forward and pushing downward.

Installing the Stylus

1. Prepare: Hold the new stylus by its tip.
2. Insert: Insert the stylus into the cartridge, pressing as indicated by direction "B" in the diagram.
3. Lock into Place: Push the stylus upward, as shown by direction "C", until it locks securely into position.

Tips

• Handle the stylus with care to avoid damaging the delicate components.
• Ensure the stylus is properly aligned and securely locked to prevent any playback issues.
• If you encounter any difficulties, refer to the user manual or contact our customer support for assistance.

By following these steps, you can ensure your turntable is equipped with a properly installed cartridge for the best audio performance.
