- Connect the included power adapter and USB cable to the unit.
- Plug the unit into a proper power connection.
- Plug the USB cable into an available USB port on your computer.
- Power on the unit.
- Once the unit is powered on successfully, press and hold the MIDI button located directly under the USB input jack on the center mixing console.
- If activated successfully, the MIDI button will illuminate. Your computer will begin installing the onboard drivers necessary for proper operation. Note: Please wait until all drivers are successfully installed.
- Launch Traktor.

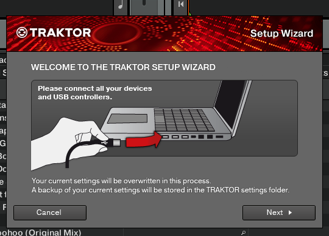

- Open the Traktor setup wizard in the bottom left-hand corner of the preferences screen.
- Begin to follow Traktor’s on-screen instructions by clicking next...

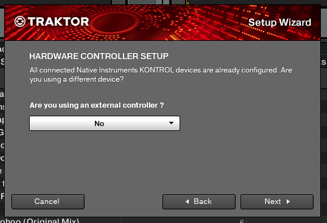

- “Are you using an external controller” Select NO...

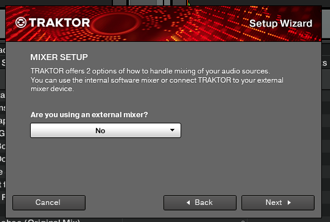

- “Are you using an external mixer” Select NO…

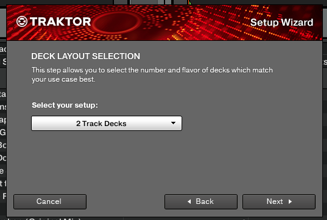

- Select 2 TRACK DECKS as your layout…

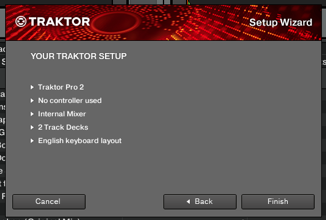

- Your Traktor setup should look like the following below…

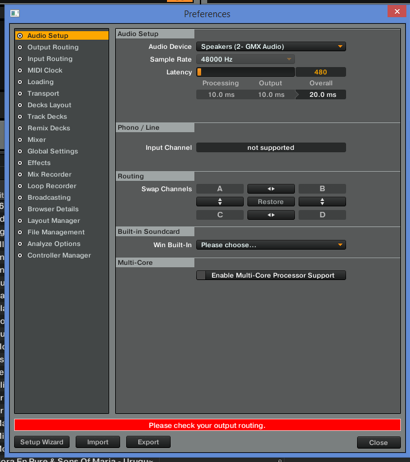

- Return to the Preferences dialog and go to AUDIO SETUP. Mirror the below screenshot…
- Select OUTPUT ROUTING. Mirror the below screenshot…
- Select CONTROLLER MANAGER. Import the GMX Traktor mapping, which can be downloaded at the bottom of this article.
- The IN and OUT ports must be set to GMX. Set the DEVICE TARGET to FOCUS…
Now you are ready to run TRAKTOR with your Gemini GMX.
Enjoy!
Product: GMX, GMX DRIVE
